The lap, butt and diagonal transition joints of dissimilar metal plates are often used in two aspects: one is metal plate structure, which is used as the transition connection of corresponding dissimilar plate structure materials; the other is used as the transition connection of corresponding dissimilar plate conductive materials in missile lines. In these two cases, the two ends of the explosion bonded transition joints are welded with the same plate material by the same or different welding methods, and the component or conductive system are integrated. Therefore, the wonderful function of this explosion bonded transition joints is to change the welding of different metal plates into the welding of the same metal plate, and solve the welding problem of different metal materials skillfully.
In order to simplify the process and reduce the cost, some overlap and butt joints can be manufactured by mechanical processing of explosion bonded transition joints of explosively welded corresponding materials.

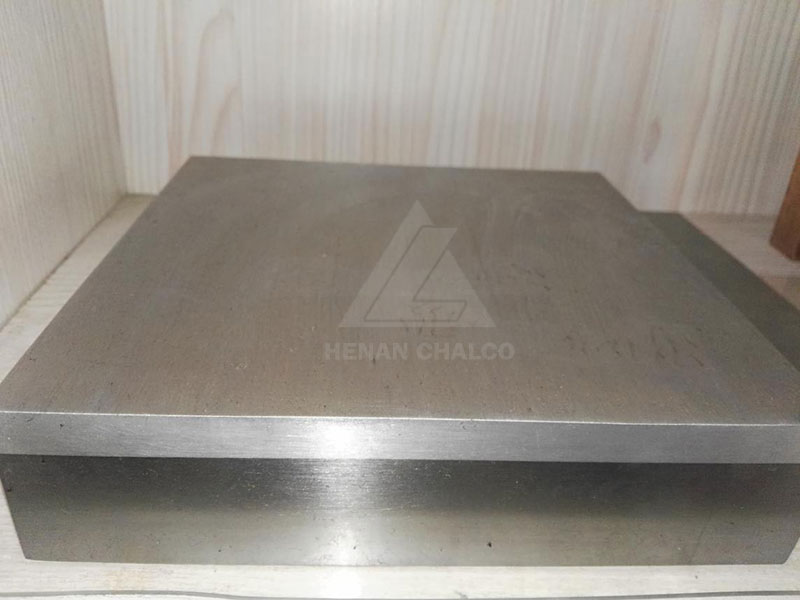

Specification of Henan Chalco Clad plates:
Dimensions of explosion bonded transition joints:
Cladding plate thickness: is 2 to 15mm, base plate thickness: 6 to 190mm.
Width of clad plate: 100 ~ 3800mm, and the maximum width can be determined through negotiation.
Length of clad plate: 1000 to 11500mm, and the maximum length can be determined through negotiation.
Diameter of clad tube sheet: 500 to 3500mm, and the maximum diameter can be determined through negotiation.
Specifications of clad sheet:
Cladding sheet thickness: 3.30 ~ 10.50mm, base sheet thickness: 3 ~ 10mm
Clad sheet thickness: 0.30 ~ 0.5mm
Width of clad sheet: 900 ~ 2000mm, length of clad sheet: 1000-8000mm
Metal clad rod size (titanium, copper):
Diameter of the clad rod: Φ40~Φ100m
Cladding thickness:2.0~3.0mm
