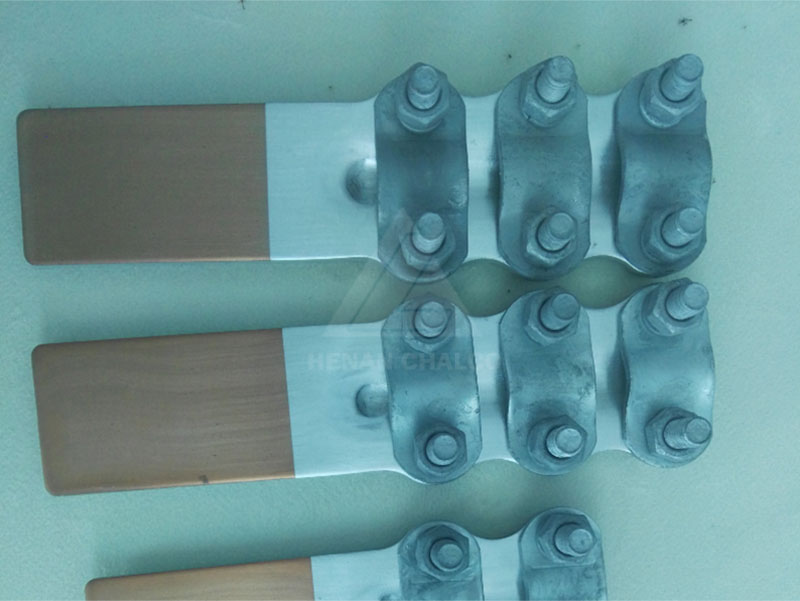

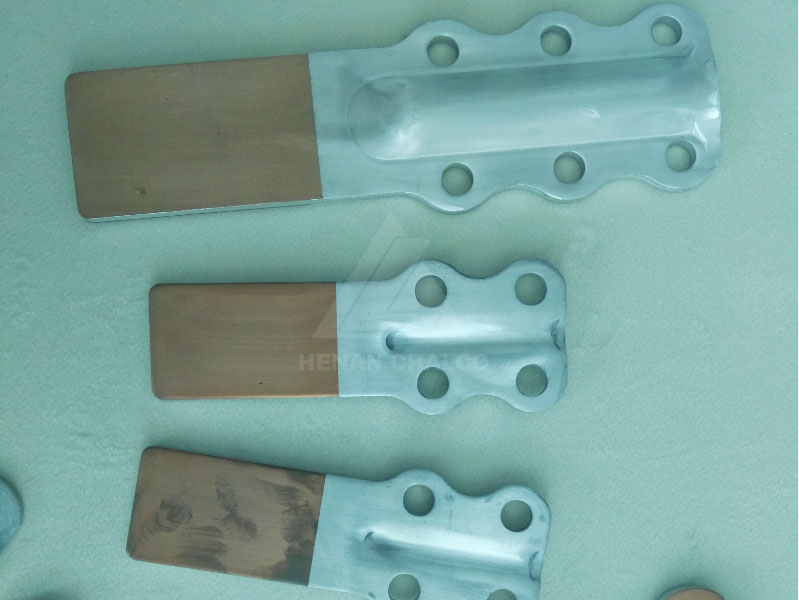

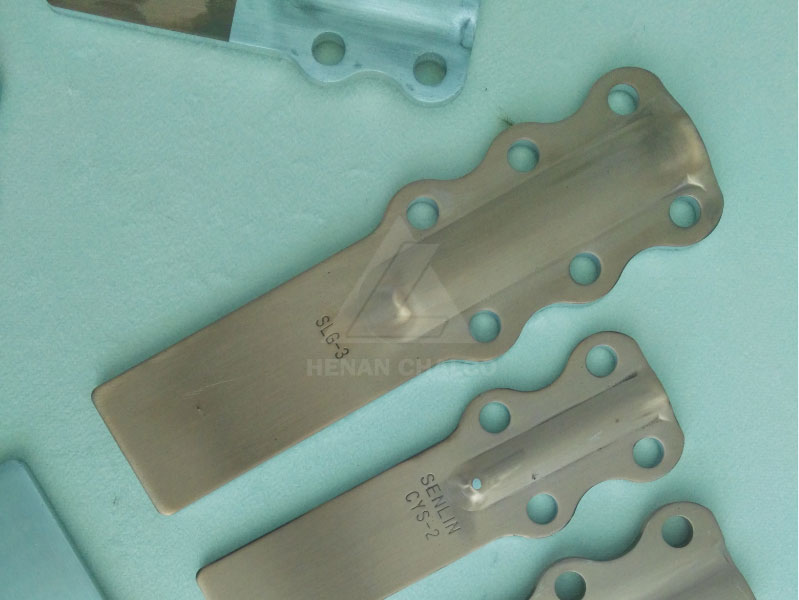

Henan Chalco through independent innovation research and development, the production of copper-aluminum composite equipment clamp, and ditch clamp, terminal and other products, widely used in the electric power industry.
This product replaces the traditional friction welding, brazing and other processes, not only improves the product quality, but also reduces the production cost, is an ideal copper aluminum transition joints products. It can completely replace the traditional Cu al welding process. It is suitable for long-distance transmission distribution and connection between transformers.
Product features: high composite strength, high conductivity, stable and reliable quality, greatly improving the processing efficiency.
Applications: Conductive industries (used for the transition between copper and aluminum connecting plate, such as motor, Transformer Outlet contact plate transformer, transformer, high and low voltage cabinet wiring, etc.).
Technical data：
| Thickness | Width | Temper | Bonding strength | Cladding type | Tensile strength | Elongation | DC Resistivity |
| 4-15mm | 300-500mm | O | ≥12N/mm | Overlay cladding; Inlay cladding; edge cladding | 90-150MPa | 5-35% | <0.0245Ω.mm2/m |
