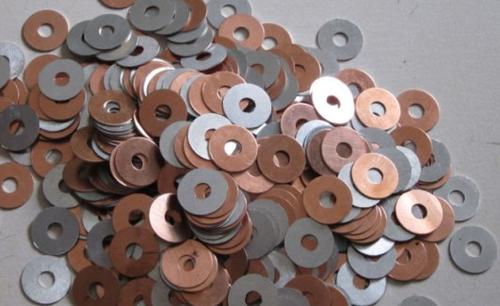

Copper aluminum bimetallic transition washer is a kind of conductive material with stable performance, high conductivity, easy forming and processing, and stable output performance, which is not affected by the use environment, The composite surface will not fracture, but can achieve excellent conductive transition without reinforcement measures. Copper aluminum  bimetallic transition washer are mainly used in high and low voltage electrical appliances, electronic components, high and low voltage transmission and transformation accessories and other places where copper aluminum transition needs to be realized. The materials are T2 pure copper and 1060 pure aluminum. It can be processed and produced according to the requirements of customers, and can also be matched arbitrarily according to the materials selected by customers. Its geometric dimension can meet the requirements of any size of joint at present. The minimum thickness of copper aluminum  bimetallic transition washer products supplied by the company is 0.3mm, and the maximum thickness can be customized according to the needs of customers。


The copper aluminum bimetallic transition washer is mainly used for copper aluminum transition connection to avoid the electrochemical corrosion between copper and aluminum caused by the direct connection of copper and aluminum and the rise of resistance, which leads to various electric accidents caused by local heating of the circuit. At present, it is mainly used in reactors, lithium batteries, electrical components and so on.


Thickness	Width	Cladding rate	Lamination  strength	Yield strength	Elongation	DC Resistivity
1.0-20.0mm	600-1000mm	100%	≥12N/mm	90-160MPa	≤10%	≤0.0245Ω•mm²/m

Henan Chalco specializes in the production of various specifications of copper aluminum bimetallic transition washer, the thickness can be produced from 20 mm to 1 mm, can drill holes according to the drawings, do machining, customers all over Japan, Italy, Dubai and other countries, welcome to contact us.
