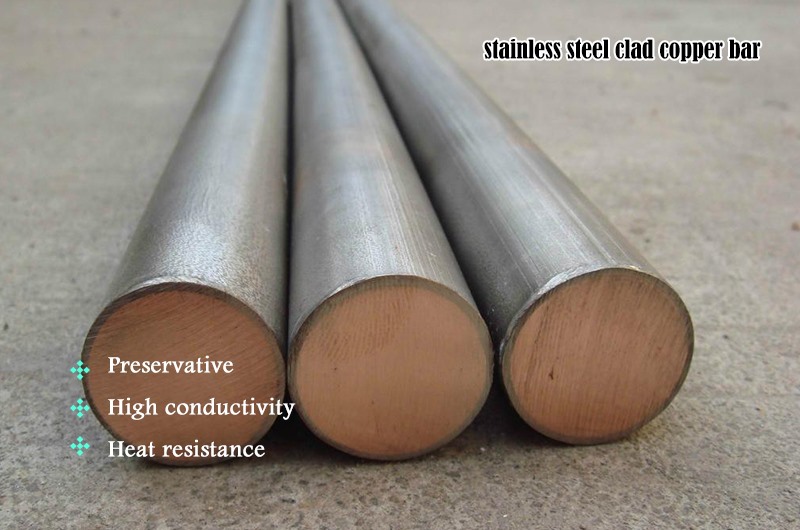

In the chemical industry and other environments that require corrosion resistance, high electrical conductivity, and heat resistance, a stainless steel clad copper bar is used. The structure of the composite rod is coated with stainless steel on the outer layer and copper core on the inner layer. The cross-section is a combination of a rectangle with a specific size and two arcs, that is, the cross-section is a rectangle with a specific size combined with two arcs. The size of the copper cross-section: rectangle length 10-70mm, width 8--30mm, two The radius of each arc is 5--16mm. The outer stainless steel layer is tightly combined with the inner copper, and the thickness of the stainless steel is uniform and consistent with 1--3mm. The conforming rod is used as a conductive cathode in the chemical industry.



Process method of stainless steel clad copper bar compounding:

1. Use stainless steel tubes and copper rods as raw materials
2. Press the red copper rod into the stainless steel tube, and the stainless steel tube and the red copper rod are closely matched.
3. Put the pressed bimetal rod into the heating furnace for heating
4. Place the bimetal rods and dishes on the rolling mill and roll them according to the required size
5. Perform hot straightening of the rolled bimetallic bar to make a stainless steel clad copper bar.
